Inside of a Mutron Bi-Phase

Post by Neil C » Tue Apr 29, 2008 6:25 pm

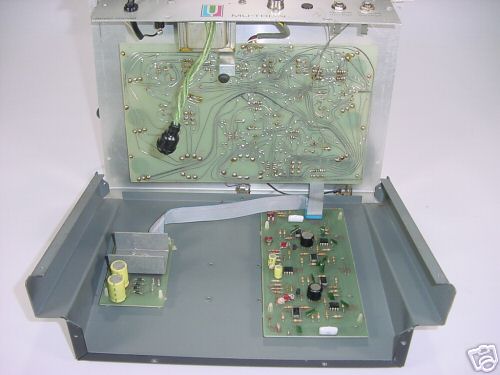

I've just come across this picture of the insides of a Mutron Bi-Phase, thought it might be of interest:

User avatar
interruptor
Posts: 1195
Joined: Sun Sep 04, 2005 11:46 pm
Location: Switzerland
Contact:

Post by interruptor » Sun May 25, 2008 6:48 pm

That's an interesting pic. Thanks for posting!
I post it again as an attachement to the message as the Photobucket link will disappear sooner or later.
Generally I request everyone to post pictures as attachements not as external links.
